PowerVCF に含まれる Get-VCFTask コマンドで、SDDC Manger のタスク情報を確認してみます。
SDDC Manager では、下記のあたりで確認できる情報です。
今回の PowerVCF
PowerVCF は、下記のようにインストールします。
Get-VCFTask は、PowerShell の PowerVCF モジュールに含まれています。
PS> gcm Get-VCFTask | select Name,Version,Module Name Version Module ---- ------- ------ Get-VCFTask 2.4.1.1000 PowerVCF

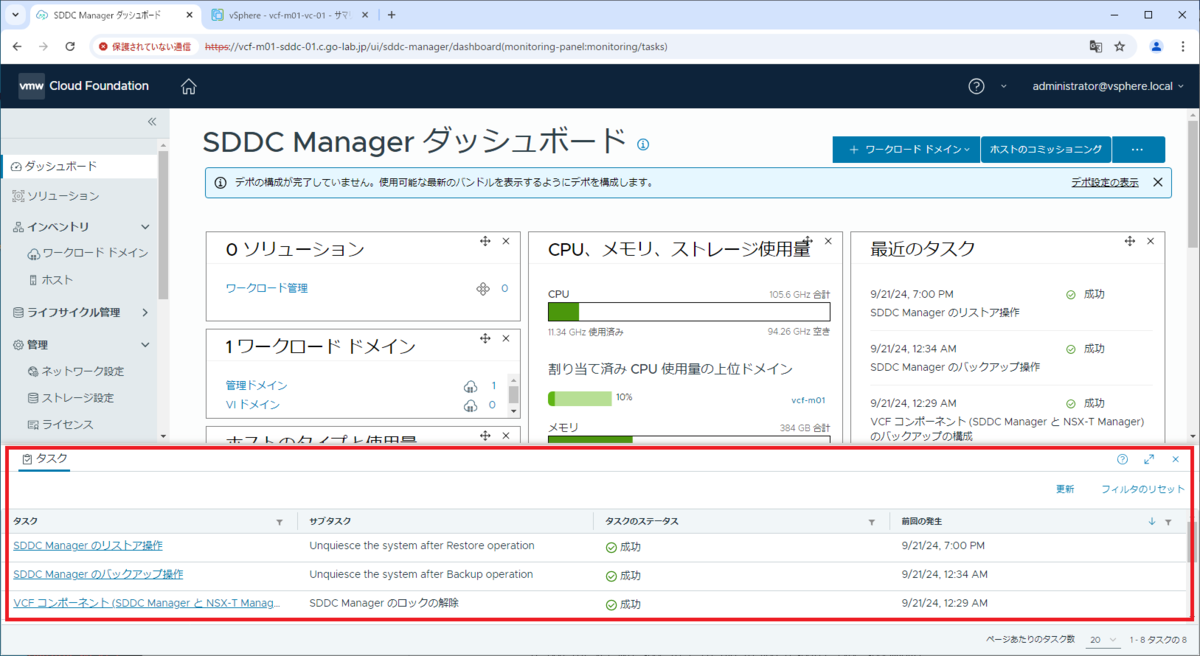

SDDC Manager でのタスク情報の様子

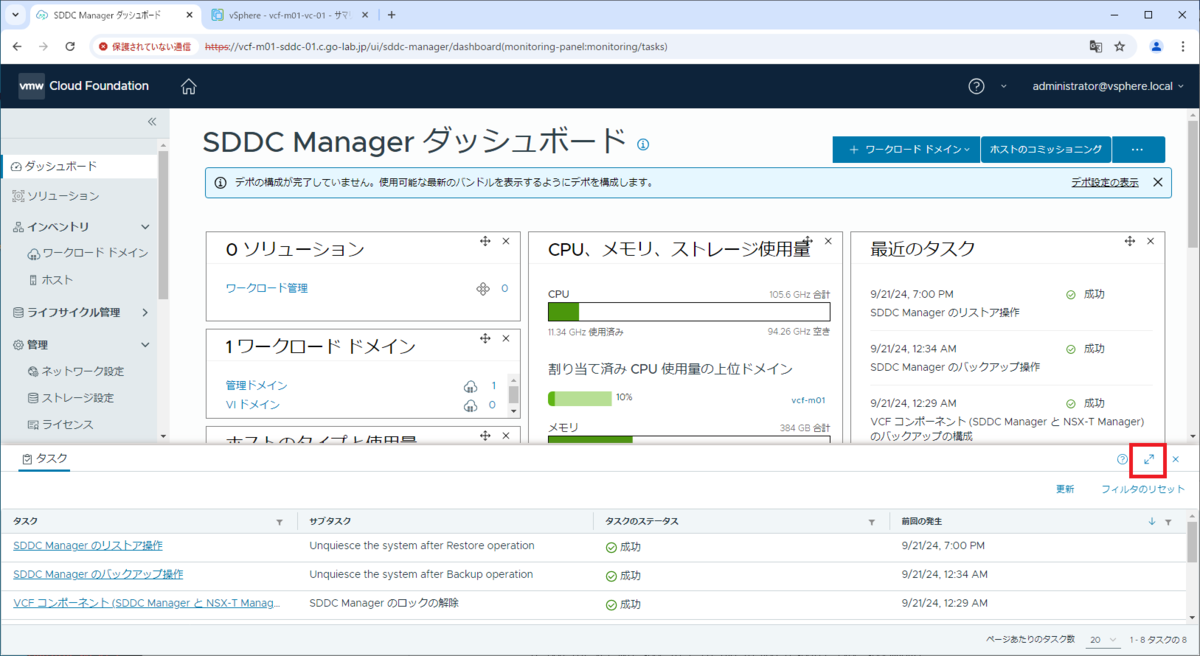

SDDC Manager では、タスク ウィンドウ右上のあたりのをクリックすると、ウインドウを拡大できます。

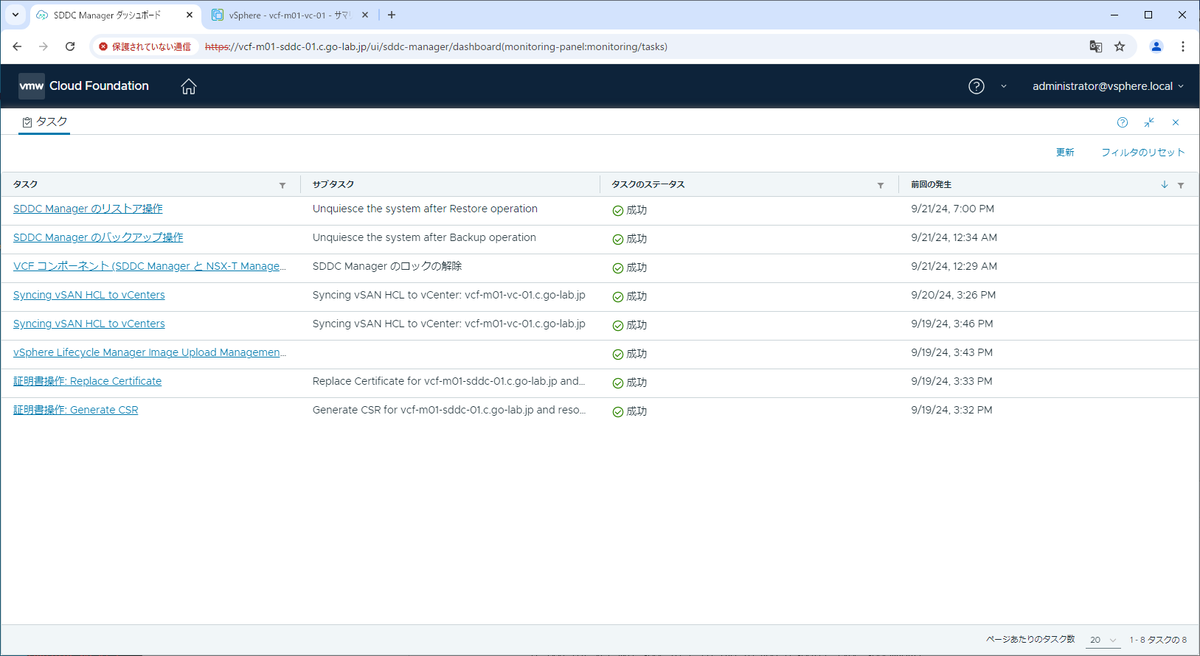

SDDC Manager では、8件のタスクが表示されています。この情報を PowerVCF で取得してみます。
PowerVCF でのタスク情報取得
まず、SDDC Manager からトークンを取得しておきます。
PS> Request-VCFToken -fqdn vcf-m01-sddc-01.c.go-lab.jp PowerShell credential request Enter your credentials. User: administrator@vsphere.local Password for user administrator@vsphere.local: **************** Successfully Requested New API Token From SDDC Manager: vcf-m01-sddc-01.c.go-lab.jp
Get-VCFTask をオプションなしで実行すると、SDDC Manager のタスク ウインドウ表示と同様に8件の情報を取得できました。
PS> Get-VCFTask
id : 5e70350d-e7b5-4221-866b-3a443ad440cb
name : SDDC Manager restore Operation
type : SDDCMANAGER_RESTORE
status : Successful
creationTimestamp : 2024/09/21 10:00:07
subTasks : {@{name=ExtractSDDCManagerBackup; description=Decrypt and Extract B
ackup and Validate SDDC Manager for Restore operation; status=SUCCE
SSFUL; creationTimestamp=2024/09/21 10:00:07; completionTimestamp=2
024/09/21 10:00:09; errors=System.Object[]}, @{name=StopSDDCManager
Services; description=Stop all VCF SDDC Manager Services; status=SU
CCESSFUL; creationTimestamp=2024/09/21 10:00:07; completionTimestam
p=2024/09/21 10:01:10; errors=System.Object[]}, @{name=RestoreSDDCM
anagerConfiguration; description=Restore SDDC Manager Configuration
files; status=SUCCESSFUL; creationTimestamp=2024/09/21 10:00:07; c
ompletionTimestamp=2024/09/21 10:01:11; errors=System.Object[]}, @{
name=RestoreSDDCManagerDatabase; description=Restore SDDC Manager D
atabase; status=SUCCESSFUL; creationTimestamp=2024/09/21 10:00:07;
completionTimestamp=2024/09/21 10:01:48; errors=System.Object[]}…}
errors : {}
resolutionStatus : UNRESOLVED
isCancellable : False
isRetryable : False
id : d8e88242-2665-4dd5-aad3-0a8e58a35184
name : SDDC Manager Backup Operation
type : SDDCMANAGER_BACKUP
status : Successful
creationTimestamp : 2024/09/20 15:34:03
subTasks : {@{name=QuiesceSystem; description=Quiescing the System for Backup
Operation; status=SUCCESSFUL; creationTimestamp=2024/09/20 15:34:03
; completionTimestamp=2024/09/20 15:34:03; errors=System.Object[]},
@{name=BackupSDDCManagerDatabase; description=Backup SDDC Manager
Database; status=SUCCESSFUL; creationTimestamp=2024/09/20 15:34:03;
completionTimestamp=2024/09/20 15:34:03; errors=System.Object[]},
@{name=BackupSDDCManagerConfiguration; description=Backup SDDC Mana
ger Configuration; status=SUCCESSFUL; creationTimestamp=2024/09/20
15:34:03; completionTimestamp=2024/09/20 15:34:03; errors=System.Ob
ject[]}, @{name=BackupSDDCManagerSystemConfiguration; description=B
ackup SDDC Manager System Configuration; status=SUCCESSFUL; creatio
nTimestamp=2024/09/20 15:34:03; completionTimestamp=2024/09/20 15:3
4:03; errors=System.Object[]}…}
errors : {}
resolutionStatus : UNRESOLVED
isCancellable : False
isRetryable : False
id : 4ed1de91-35f5-440f-923c-93307820b01a
name : Configure Backup of VCF Components (SDDC Manager and NSX Managers
)
status : Successful
creationTimestamp : 2024/09/20 15:29:04
completionTimestamp : 2024/09/20 15:29:29
subTasks : {@{name=Acquire Lock on SDDC Manager; description=Acquire Lock on
SDDC Manager; status=SUCCESSFUL; creationTimestamp=2024/09/20 15
:29:05; completionTimestamp=2024/09/20 15:29:05; errors=System.Ob
ject[]}, @{name=Validate Backup Configuration Input Data; descrip
tion=Validate Backup Configuration Input Data; status=SUCCESSFUL;
creationTimestamp=2024/09/20 15:29:05; completionTimestamp=2024/
09/20 15:29:05; errors=System.Object[]}, @{name=Automation Helper
Action; description=Automation Helper Action; status=SUCCESSFUL;
creationTimestamp=2024/09/20 15:29:05; completionTimestamp=2024/
09/20 15:29:05; errors=System.Object[]}, @{name=Validate Backup S
erver Fingerprint and Get Host Key; description=Validate Backup S
erver Fingerprint and Get Host Key; status=SUCCESSFUL; creationTi
mestamp=2024/09/20 15:29:05; completionTimestamp=2024/09/20 15:29
:06; errors=System.Object[]}…}
errors : {}
resolutionStatus : UNRESOLVED
isCancellable : False
isRetryable : True
id : 8cc4a5be-40a4-49dc-9c86-6549f58c4c7f
name : Syncing vSAN HCL to vCenters
type : VSAN_HCL_SYNC
status : SUCCESSFUL
creationTimestamp : 2024/09/20 6:26:54
completionTimestamp : 2024/09/20 6:26:59
subTasks : {@{name=Syncing vSAN HCL to vCenter: vcf-m01-vc-01.c.go-lab.jp; d
escription=Syncing vSAN HCL to vCenter: vcf-m01-vc-01.c.go-lab.jp
; status=SUCCESSFUL; creationTimestamp=2024/09/20 6:26:54; comple
tionTimestamp=2024/09/20 6:26:59; resources=System.Object[]}}
isCancellable : False
isRetryable : False
id : 390476c9-4706-47da-9eab-f758f091d2d0
name : Syncing vSAN HCL to vCenters
type : VSAN_HCL_SYNC
status : SUCCESSFUL
creationTimestamp : 2024/09/19 6:46:35
completionTimestamp : 2024/09/19 6:46:38
subTasks : {@{name=Syncing vSAN HCL to vCenter: vcf-m01-vc-01.c.go-lab.jp; d
escription=Syncing vSAN HCL to vCenter: vcf-m01-vc-01.c.go-lab.jp
; status=SUCCESSFUL; creationTimestamp=2024/09/19 6:46:35; comple
tionTimestamp=2024/09/19 6:46:38; resources=System.Object[]}}
isCancellable : False
isRetryable : False
id : 8e7398d5-f4f1-40d1-a893-0a8f852288c0
name : vSphere Lifecycle Manager Image Upload Management-Domain-ESXi-Per
sonality
status : SUCCESSFUL
creationTimestamp : 2024/09/19 6:43:23
completionTimestamp : 2024/09/19 6:46:24
isCancellable : False
isRetryable : False
id : 2002f5c3-e3f2-4676-a833-1d33bf7dbd5a
name : Certificate Operation: Replace Certificate
type : CERT_REPLACEMENT
status : Successful
creationTimestamp : 2024/09/19 6:33:22
subTasks : {@{name=vcf-m01-sddc-01.c.go-lab.jp:sddcmanager; description=Replac
e Certificate for vcf-m01-sddc-01.c.go-lab.jp and resource type sdd
cmanager; status=SUCCESSFUL; creationTimestamp=2024/09/19 6:33:22;
completionTimestamp=2024/09/19 6:35:43}}
errors : {}
resolutionStatus : UNRESOLVED
isCancellable : False
isRetryable : True
id : 43522db7-5641-47b8-a96f-fda581971a40
name : Certificate Operation: Generate CSR
type : CERT_CSR_GENERATION
status : Successful
creationTimestamp : 2024/09/19 6:32:19
subTasks : {@{name=vcf-m01-sddc-01.c.go-lab.jp:sddcmanager; description=Genera
te CSR for vcf-m01-sddc-01.c.go-lab.jp and resource type sddcmanage
r; status=SUCCESSFUL; creationTimestamp=2024/09/19 6:32:19; complet
ionTimestamp=2024/09/19 6:32:20}}
errors : {}
resolutionStatus : UNRESOLVED
isCancellable : False
isRetryable : False
PowerVCF でのタスク情報取得（タスク ID 単位）
以前の投稿で、REST API で取得していた情報を、PowerVCF でも確認してみます。
そもそもこのタスクは、実行していた時点では SDDC Manager がリストアで停止していたので PowerVCF ではリアルタイム確認できなそうですが、あとからレポート作成をする際などには役立つかもしれません・・・
PS> Get-VCFTask -id 5e70350d-e7b5-4221-866b-3a443ad440cb
id : 5e70350d-e7b5-4221-866b-3a443ad440cb
name : SDDC Manager restore Operation
type : SDDCMANAGER_RESTORE
status : Successful
creationTimestamp : 2024/09/21 10:00:07
subTasks : {@{name=ExtractSDDCManagerBackup; description=Decrypt and Extract Backup
and Validate SDDC Manager for Restore operation; status=SUCCESSFUL; cre
ationTimestamp=2024/09/21 10:00:07; completionTimestamp=2024/09/21 10:00
:09; errors=System.Object[]}, @{name=StopSDDCManagerServices; descriptio
n=Stop all VCF SDDC Manager Services; status=SUCCESSFUL; creationTimesta
mp=2024/09/21 10:00:07; completionTimestamp=2024/09/21 10:01:10; errors=
System.Object[]}, @{name=RestoreSDDCManagerConfiguration; description=Re
store SDDC Manager Configuration files; status=SUCCESSFUL; creationTimes
tamp=2024/09/21 10:00:07; completionTimestamp=2024/09/21 10:01:11; error
s=System.Object[]}, @{name=RestoreSDDCManagerDatabase; description=Resto
re SDDC Manager Database; status=SUCCESSFUL; creationTimestamp=2024/09/2
1 10:00:07; completionTimestamp=2024/09/21 10:01:48; errors=System.Objec
t[]}…}
errors : {}
resolutionStatus : UNRESOLVED
isCancellable : False
isRetryable : False
サブ タスクの情報も確認してみます。 SDDCMANAGER_RESTORE タスクでは、creationTimestamp のタイムスタンプが親タスクと揃うようです。
PS> Get-VCFTask -id 5e70350d-e7b5-4221-866b-3a443ad440cb | select -ExpandProperty subTasks
name : ExtractSDDCManagerBackup
description : Decrypt and Extract Backup and Validate SDDC Manager for Restore operation
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:00:09
errors : {}
name : StopSDDCManagerServices
description : Stop all VCF SDDC Manager Services
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:01:10
errors : {}
name : RestoreSDDCManagerConfiguration
description : Restore SDDC Manager Configuration files
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:01:11
errors : {}
name : RestoreSDDCManagerDatabase
description : Restore SDDC Manager Database
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:01:48
errors : {}
name : StartSDDCManagerServices
description : Start and Validate all VCF SDDC Manager Service
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:04:53
errors : {}
name : RestoreSDDCSystemConfiguration
description : Restore SDDC Manager System Configuration
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:05:50
errors : {}
name : PostRestoreRemediation
description : Post Restore Remediation
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:06:21
errors : {}
name : PostRestoreNfsRefresh
description : Refresh NFS post restore
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:09:48
errors : {}
name : UnquiesceSystem
description : Unquiesce the system after Restore operation
status : SUCCESSFUL
creationTimestamp : 2024/09/21 10:00:07
completionTimestamp : 2024/09/21 10:09:48
errors : {}
以上、PowerVCF で SDDC Manager のタスク情報を確認してみる話でした。
