PowerVCF で VI Workload Domain を展開してみる。Part-03: VI Workload Domain（NSX あり）の展開

VMware Cloud Foundation (VCF) PowerVCF NSX (NSX-T)

VMware Cloud Foundation（VCF）5.2 の VI Workload Domain を、PowerVCF でデプロイしてみます。今回は、NSX ありの VI Workload Domain を展開します。



前回はこちら。



今回の内容です。



前提情報の確認

New-VCFWorkloadDomain でのワークロード ドメインの展開では、ESXi ホストの ID と、vLCM のイメージ ID（clusterImageId）の指定が必要です。

PowerVCF は、下記のようにインストールしてあります。

PowerVCF で、SDDC Manager からトークンを取得しておきます。このトークンはわりとすぐ期限切れになるので、必要に応じで再取得します。

PS> Request-VCFToken -fqdn vcf-m01-sddc-01.c.go-lab.jp -username administrator@vsphere.local -password "VMware1!VMware1!"
Successfully Requested New API Token From SDDC Manager: vcf-m01-sddc-01.c.go-lab.jp



Get-VCFHost で、前回のコミッショニングで登録された ESXi ホストの ID を確認しておきます。コミッショニングが完了しているホストは、ステータスが UNASSIGNED_USEABLE になっています。

PS> Get-VCFHost -Status UNASSIGNED_USEABLE | Select-Object id,fqdn,status | Sort-Object fqdn | ft -AutoSize

id                                   fqdn                        status
--                                   ----                        ------
9d869cc9-b880-4507-9035-b4eb171a3c4f vcf-w01-esxi-01.c.go-lab.jp UNASSIGNED_USEABLE
5562be0c-7cd7-4ff1-a441-0ba5855728ce vcf-w01-esxi-02.c.go-lab.jp UNASSIGNED_USEABLE
b7f241e3-c43a-4685-a66c-0a317a88bf51 vcf-w01-esxi-03.c.go-lab.jp UNASSIGNED_USEABLE



クラスタのイメージは、ひとまず Management Domain にデフォルトで作成される Management-Domain-ESXi-Personality というイメージを指定します。



クラスタのイメージは Personality と呼ばれるようで、クラスタ イメージの ID（personalityId）は Get-VCFPersonality で確認できます。

PS> Get-VCFPersonality | Select-Object personalityName,personalityId,version | Format-List

personalityName : Management-Domain-ESXi-Personality
personalityId   : f4f12212-af5d-42fd-a90a-7f80fc413b44
version         : 1



JSON ファイルの用意

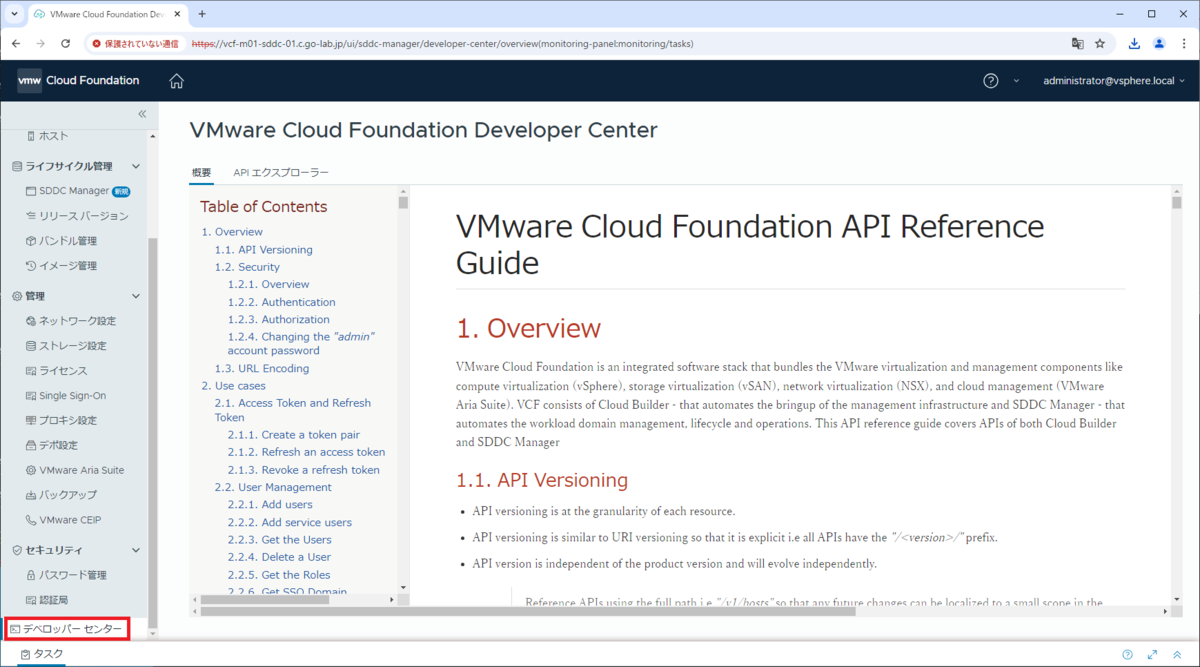

JSON ファイルは、API リファレンスのサンプルなどを参考に作成します。SDDC Manager の「デベロッパー センター」を開くと、API のリファレンス ガイドが用意されています。



ベースにする JSON のサンプルは、インターネット公開されている下記ページが新しそうです。



JSON ファイルは、下記のように作成しました。

vi-domain_vcf-w01_nsx.json

  • L55, L72, L89：ESXi ホストの ID を指定します。
  • L49：クラスタ イメージ ID を指定します。
  • L36：NSX Manager のサイズは、最小要件の large から medium に下げています。
  • vCenter Single Sign-On では、既存の Management Domain の SSO ドメインに参加します。（拡張リンク モードになります。）

gist.github.com



JSON ファイルの確認

PowerVCF の New-VCFWorkloadDomain には「-validate」オプションが実装されていないので、JSON ファイルの内容は SDDC Manager の API エクスプローラーなどで確認します。

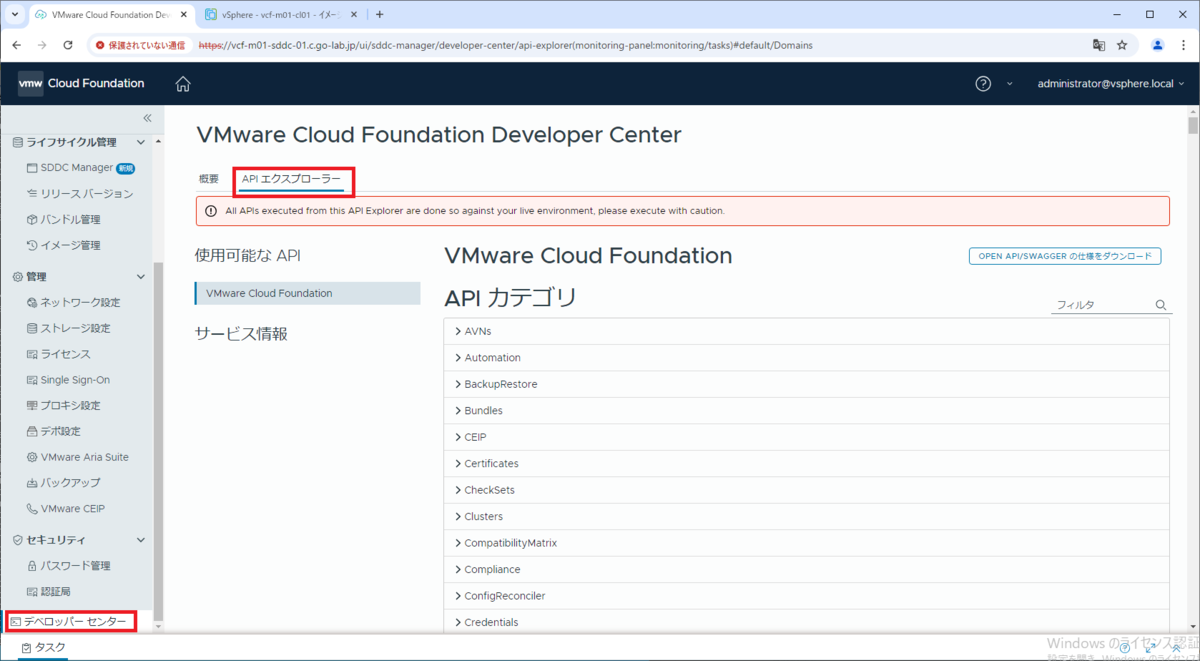

「デベロッパー センター」→「API エクスプローラー」を開きます。

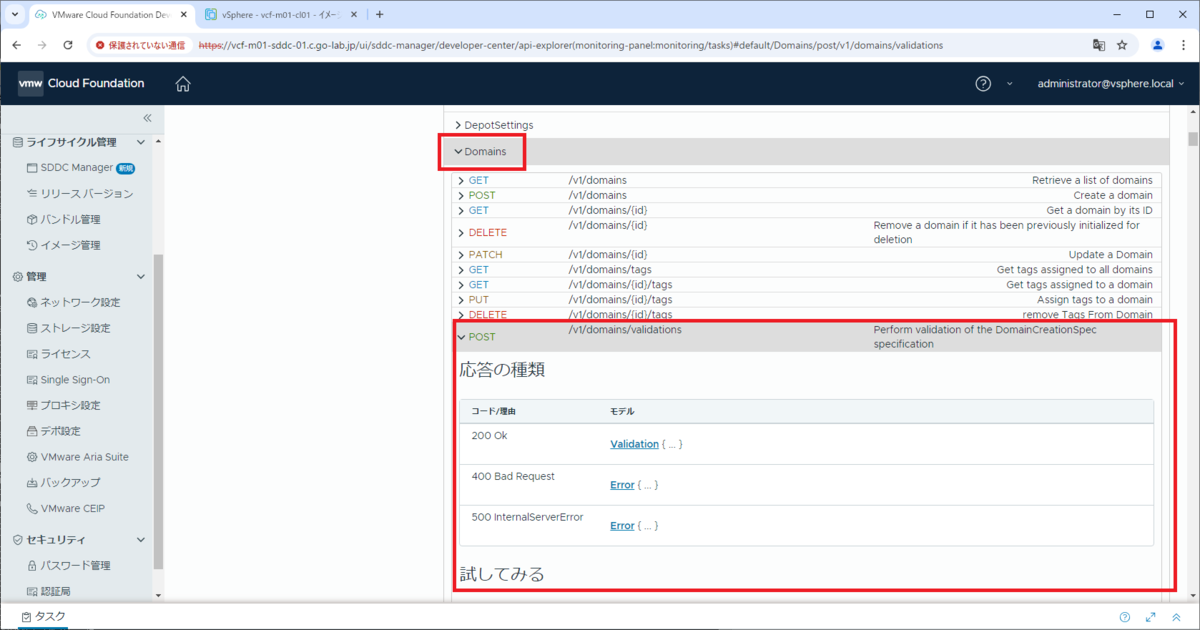

「Domains」の配下にある、「POST /v1/domains/validations」を開きます。

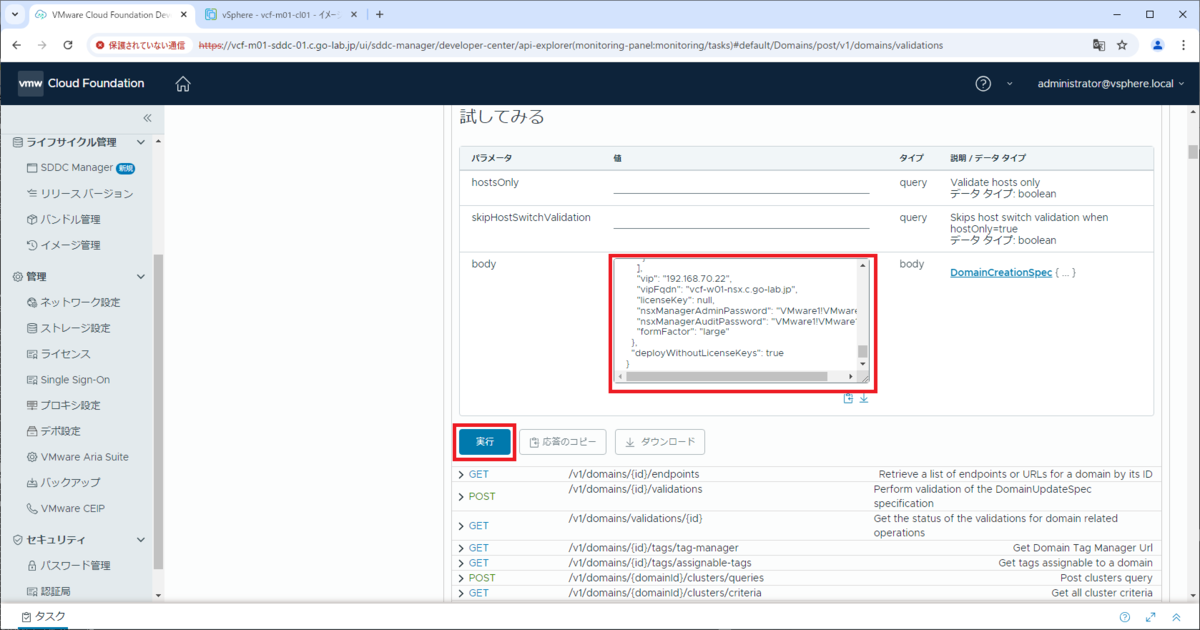

「body」に JSON ファイルの内容を貼り付けて、「実行」をクリックします。

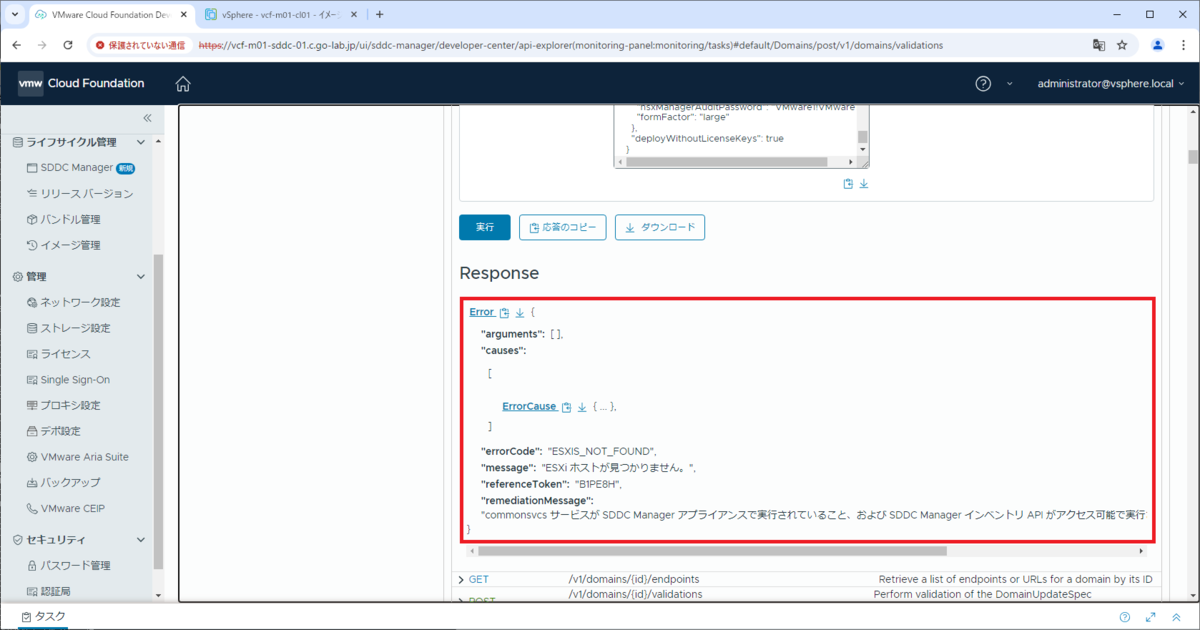

JSON に問題があると、下記のようにエラー内容が表示されます。 HTTP Error 500 （PUBLIC_INTERNAL_SERVER_ERROR）などが返されてわかりにくいので、頑張って解消します。

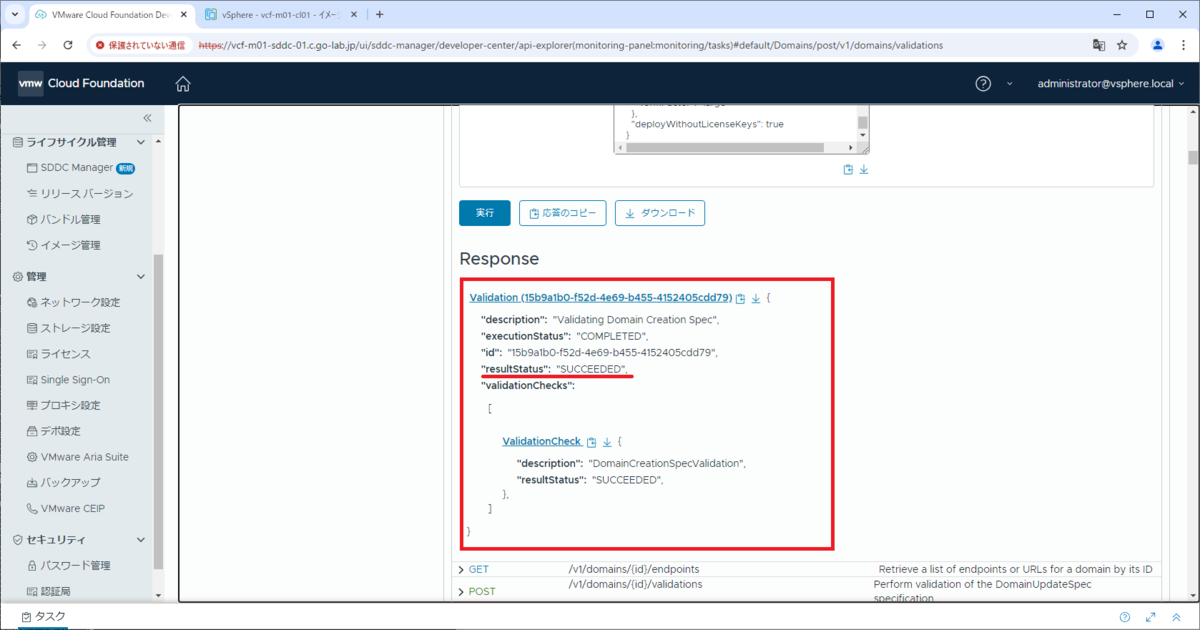

チェックが通ると、下記のように「"resultStatus": "SUCCEEDED"」になります。



VI Workload Domain の展開

New-VCFWorkloadDomain で、Workload Domain を展開します。表示されるタスク情報には ID 含まれるので、Get-VCFTask などで進捗確認できます。

PS> New-VCFWorkloadDomain -json (Get-Content -Raw C:\work\json\vi-domain_vcf-w01_nsx.json)
Task validation completed successfully. Invoking Workload Domain Creation on SDDC Manager

id                         : a33f7223-30c2-44ce-a0e1-2fb6e92f56e9
name                       : Creating domain
localizableDescriptionPack : @{component=VCF; messageKey=ADD_DOMAIN_WORKFLOW; arguments=System.Object[]; message=Creating Workload Domain: vcf-w01; bundle=com.vmware.vcf.domainmanager.workflow.workflowde
                             scriptions}
status                     : IN_PROGRESS
creationTimestamp          : 2024/09/29 7:06:31
isCancellable              : False
isRetryable                : False



成功すると、下記のようになります。

PS> Get-VCFTask -id a33f7223-30c2-44ce-a0e1-2fb6e92f56e9

id                  : a33f7223-30c2-44ce-a0e1-2fb6e92f56e9
name                : Creating Workload Domain: vcf-w01
type                : DOMAIN_CREATION
status              : Successful
creationTimestamp   : 2024/09/29 7:06:33
completionTimestamp : 2024/09/29 9:50:22
subTasks            : {@{name=Generate Workload Domain Resources for Allocation Input Data; descript
                      ion=Generate Workload Domain Resources for Allocation Input Data; status=SUCCE
                      SSFUL; creationTimestamp=2024/09/29 7:06:34; completionTimestamp=2024/09/29 7:
                      06:34; errors=System.Object[]}, @{name=Allocate resources; description=Allocat
                      e resources; status=SUCCESSFUL; creationTimestamp=2024/09/29 7:06:34; completi
                      onTimestamp=2024/09/29 7:06:34; errors=System.Object[]}, @{name=Generate Workl
                      oad Domain Creation Locking Input Data; description=Generate Workload Domain C
                      reation Locking Input Data; status=SUCCESSFUL; creationTimestamp=2024/09/29 7:
                      06:34; completionTimestamp=2024/09/29 7:06:34; errors=System.Object[]}, @{name
                      =Acquire Resource Locks; description=Acquire Resource Locks; status=SUCCESSFUL
                      ; creationTimestamp=2024/09/29 7:06:34; completionTimestamp=2024/09/29 7:06:34
                      ; errors=System.Object[]}…}
errors              : {}
resources           : {@{resourceId=08f12d88-65ff-4a52-8403-865afb90189d; type=Cluster}, @{resourceI
                      d=9d869cc9-b880-4507-9035-b4eb171a3c4f; type=Esxi}, @{resourceId=f4f4f451-dffb
                      -40c8-84e0-67f0747334d0; type=Domain}, @{resourceId=5562be0c-7cd7-4ff1-a441-0b
                      a5855728ce; type=Esxi}…}
resolutionStatus    : UNRESOLVED
isCancellable       : False
isRetryable         : True



サブ タスクの様子です。

PS> Get-VCFTask -id a33f7223-30c2-44ce-a0e1-2fb6e92f56e9 | Select-Object -ExpandProperty subTasks | Select-Object status,creationTimestamp,completionTimestamp,name

status     creationTimestamp  completionTimestamp name
------     -----------------  ------------------- ----
SUCCESSFUL 2024/09/29 7:06:34 2024/09/29 7:06:34  Generate Workload Domain Resources for Allocation Input Data
SUCCESSFUL 2024/09/29 7:06:34 2024/09/29 7:06:34  Allocate resources
SUCCESSFUL 2024/09/29 7:06:34 2024/09/29 7:06:34  Generate Workload Domain Creation Locking Input Data
SUCCESSFUL 2024/09/29 7:06:34 2024/09/29 7:06:34  Acquire Resource Locks
SUCCESSFUL 2024/09/29 7:06:34 2024/09/29 7:06:34  Validate Backup User Password Conforms to Required Password Policy
SUCCESSFUL 2024/09/29 7:06:35 2024/09/29 7:06:35  Validate Management Workload Domain has enough Resources for NSX Deployment
SUCCESSFUL 2024/09/29 7:06:35 2024/09/29 7:06:35  Automation Helper Action
SUCCESSFUL 2024/09/29 7:06:35 2024/09/29 7:06:38  Perform set of validations for current workflow
SUCCESSFUL 2024/09/29 7:06:38 2024/09/29 7:06:38  Automation Helper Action
SUCCESSFUL 2024/09/29 7:06:38 2024/09/29 7:06:38  Validate NSX Version is Compliant with VMware Cloud Foundation
SUCCESSFUL 2024/09/29 7:06:38 2024/09/29 7:07:56  Validate NSX Input Specification
SUCCESSFUL 2024/09/29 7:07:56 2024/09/29 7:07:56  Get NSX Version Compliant with VMware Cloud Foundation
SUCCESSFUL 2024/09/29 7:07:56 2024/09/29 7:07:56  Validate NSX Install Image is Available
SUCCESSFUL 2024/09/29 7:07:57 2024/09/29 7:07:57  Validate NSX Compute Managers Availability
SUCCESSFUL 2024/09/29 7:07:57 2024/09/29 7:08:18  Validate ESXi Hosts do not Contain Disallowed NSX vSphere Installation Bundles (VIBs)
SUCCESSFUL 2024/09/29 7:08:18 2024/09/29 7:08:18  Automation Helper Action
SUCCESSFUL 2024/09/29 7:08:19 2024/09/29 7:08:19  Update the inventory host with MTU and VLAN ID of the ESXI's management network
SUCCESSFUL 2024/09/29 7:08:19 2024/09/29 7:08:19  Prevalidate Add Workload Domain
SUCCESSFUL 2024/09/29 7:08:19 2024/09/29 7:08:19  Generate Validate vSAN disks for ESXi Hosts Input Data
SUCCESSFUL 2024/09/29 7:08:19 2024/09/29 7:08:20  Validate if ESXi Host(s) Do Not Use DHCP for the Management Network
SUCCESSFUL 2024/09/29 7:08:20 2024/09/29 7:08:21  Validate vSAN disks for ESXi Host(s)
SUCCESSFUL 2024/09/29 7:08:21 2024/09/29 7:08:21  Generate Add Workload Domain Input Data
SUCCESSFUL 2024/09/29 7:08:21 2024/09/29 7:08:26  Validate Workload Domain Deployment Specification
SUCCESSFUL 2024/09/29 7:08:26 2024/09/29 7:08:27  Obtain ESXi Host(s) Details
SUCCESSFUL 2024/09/29 7:08:27 2024/09/29 7:08:27  Update ESXi Host(s) Details in Runtime Data Model for Add Workload Domain
SUCCESSFUL 2024/09/29 7:08:27 2024/09/29 7:08:27  Generate Add Workload Domain Input Data
SUCCESSFUL 2024/09/29 7:08:27 2024/09/29 7:08:27  Validate Stale vCenter References in PSC Action
SUCCESSFUL 2024/09/29 7:08:28 2024/09/29 7:08:28  Retrieve Backup Configuration
SUCCESSFUL 2024/09/29 7:08:28 2024/09/29 7:08:28  Validate Backup Location Details
SUCCESSFUL 2024/09/29 7:08:28 2024/09/29 7:08:28  Validate Virtual Machine Names Do Not Exist in the vCenter Server Inventory
SUCCESSFUL 2024/09/29 7:08:29 2024/09/29 7:08:29  Validate ESXi Host(s) Details
SUCCESSFUL 2024/09/29 7:08:29 2024/09/29 7:08:29  Fetch Product Images
SUCCESSFUL 2024/09/29 7:08:29 2024/09/29 7:08:29  Allocate ESXi Host(s) IP Addresses
SUCCESSFUL 2024/09/29 7:08:29 2024/09/29 7:08:30  Persist Allocated ESXi Hosts IP Addresses in the SDDC Manager Inventory
SUCCESSFUL 2024/09/29 7:08:30 2024/09/29 7:08:30  Generate the Workload Domain Details to Populate the SDDC Manager Inventory
SUCCESSFUL 2024/09/29 7:08:30 2024/09/29 7:08:30  Update the SDDC Manager Inventory with the Workload Domain Details
SUCCESSFUL 2024/09/29 7:08:30 2024/09/29 7:08:31  Create Workload Domain Service Account Credentials
SUCCESSFUL 2024/09/29 7:08:31 2024/09/29 7:08:31  Mount the vCenter Server ISO Image
SUCCESSFUL 2024/09/29 7:08:31 2024/09/29 7:08:31  Register Current Task
SUCCESSFUL 2024/09/29 7:08:31 2024/09/29 7:08:33  Generate Workload Domain Runtime Data Model
SUCCESSFUL 2024/09/29 7:08:33 2024/09/29 7:08:33  Generate Workload Domain Workflow Input Data
SUCCESSFUL 2024/09/29 7:08:33 2024/09/29 7:08:34  Validate Workload Domain Input Data
SUCCESSFUL 2024/09/29 7:08:35 2024/09/29 7:08:35  Generate Validate ESXi Host(s) vMotion Network Connectivity Input Data
SUCCESSFUL 2024/09/29 7:08:35 2024/09/29 7:09:42  Validate vMotion Network Connectivity
SUCCESSFUL 2024/09/29 7:09:43 2024/09/29 7:10:52  Validate vSAN Network Connectivity
SUCCESSFUL 2024/09/29 7:10:52 2024/09/29 7:10:52  Updates join Single Sign-On (SSO) status for vCenter Server
SUCCESSFUL 2024/09/29 7:10:52 2024/09/29 7:10:53  Validate the Single Sign-On (SSO) Ring Topology
SUCCESSFUL 2024/09/29 7:10:53 2024/09/29 7:10:53  Generate vCenter Server Configuration Data
SUCCESSFUL 2024/09/29 7:10:53 2024/09/29 7:56:49  Deploy vCenter Server Virtual Appliance
SUCCESSFUL 2024/09/29 7:56:49 2024/09/29 7:56:58  Register Embedded Platform Services Controller with SDDC Manager Trust Store
SUCCESSFUL 2024/09/29 7:56:58 2024/09/29 7:57:03  Validate vCenter services are started
SUCCESSFUL 2024/09/29 7:57:03 2024/09/29 7:57:05  Install vCenter Server SSH Key
SUCCESSFUL 2024/09/29 7:57:05 2024/09/29 7:57:05  Generate vCenter Server Federal Information Processing Standards (FIPS) Configuration Input Data
SUCCESSFUL 2024/09/29 7:57:05 2024/09/29 7:57:07  Configure vCenter FIPS
SUCCESSFUL 2024/09/29 7:57:07 2024/09/29 7:57:08  Register SDDC Manager as an extension in vCenter Server
SUCCESSFUL 2024/09/29 7:57:08 2024/09/29 7:57:42  Join vCenter Server to the Single Sign-On (SSO) Ring Topology
SUCCESSFUL 2024/09/29 7:57:43 2024/09/29 7:57:44  Create Datacenter and populate Managed Object ID in the Internal Add Cluster Model
SUCCESSFUL 2024/09/29 7:57:44 2024/09/29 7:57:45  Configure Deployment Details
SUCCESSFUL 2024/09/29 7:57:45 2024/09/29 7:57:45  Authorize SDDC Admins Group
SUCCESSFUL 2024/09/29 7:57:45 2024/09/29 7:57:46  Obtain vCenter Server Object MOIDs
SUCCESSFUL 2024/09/29 7:57:46 2024/09/29 7:57:46  Create SDDC Manager to vCenter Server Service Account Credentials
SUCCESSFUL 2024/09/29 7:57:46 2024/09/29 7:57:47  Generate vCenter Server Service Accounts Data
SUCCESSFUL 2024/09/29 7:57:47 2024/09/29 7:57:47  Automation Helper Action
SUCCESSFUL 2024/09/29 7:57:47 2024/09/29 7:57:49  Create vCenter Server Users
SUCCESSFUL 2024/09/29 7:57:49 2024/09/29 7:57:49  Create vCenter Server Roles
SUCCESSFUL 2024/09/29 7:57:49 2024/09/29 7:57:50  Assign User Roles in vCenter Server
SUCCESSFUL 2024/09/29 7:57:50 2024/09/29 7:57:51  Add Disaster Recovery Service Users to Administrator Group in vCenter Server
SUCCESSFUL 2024/09/29 7:57:51 2024/09/29 7:57:51  Read Certificate Authority Certificate Chain from File
SUCCESSFUL 2024/09/29 7:57:51 2024/09/29 7:57:57  Import Trusted Root Certificates in vCenter Server
SUCCESSFUL 2024/09/29 7:57:57 2024/09/29 7:57:59  Update NSX Firewall Exclusion List
SUCCESSFUL 2024/09/29 7:57:59 2024/09/29 8:01:40  Prepare ESXi Hosts for vSAN
SUCCESSFUL 2024/09/29 8:01:40 2024/09/29 8:01:43  Create vSphere Cluster
SUCCESSFUL 2024/09/29 8:01:43 2024/09/29 8:01:59  Initialize vSAN cluster
SUCCESSFUL 2024/09/29 8:02:00 2024/09/29 8:02:00  Update the Runtime Data Model with the Cluster's Managed Object ID from vCenter Server
SUCCESSFUL 2024/09/29 8:02:00 2024/09/29 8:02:00  Automation Helper Action
SUCCESSFUL 2024/09/29 8:02:00 2024/09/29 8:02:01  Disable vSphere Cluster Services
SUCCESSFUL 2024/09/29 8:02:01 2024/09/29 8:02:04  Create vSphere Distributed Switch
SUCCESSFUL 2024/09/29 8:02:04 2024/09/29 8:02:06  Enable Network I/O Control (NIOC) on vSphere Distributed Switch
SUCCESSFUL 2024/09/29 8:02:06 2024/09/29 8:02:14  Create Distributed Port Groups
SUCCESSFUL 2024/09/29 8:02:14 2024/09/29 8:02:20  Tag VLAN IDs on Distributed Port Groups
SUCCESSFUL 2024/09/29 8:02:21 2024/09/29 8:02:21  Generate Persist Source ID from vCenter Server of vSphere Distributed Switch in SDDC Manager Inventory Input Data
SUCCESSFUL 2024/09/29 8:02:21 2024/09/29 8:02:21  Persist Source ID from vCenter Server of vSphere Distributed Switch in SDDC Manager Inventory
SUCCESSFUL 2024/09/29 8:02:21 2024/09/29 8:02:21  Generate Persist Source ID from vCenter Server of vSphere Distributed Virtual Port Groups in SDDC Manager Inventory Input Data
SUCCESSFUL 2024/09/29 8:02:21 2024/09/29 8:02:22  Persist Source ID from vCenter Server of vSphere Distributed Virtual Port Groups in SDDC Manager Inventory
SUCCESSFUL 2024/09/29 8:02:22 2024/09/29 8:02:22  Generate ESXi Lockdown Mode Input Data
SUCCESSFUL 2024/09/29 8:02:22 2024/09/29 8:02:22  Retrieve ESXi Host Lockdown Mode Configuration
SUCCESSFUL 2024/09/29 8:02:23 2024/09/29 8:02:23  Disable Lockdown Mode on ESXi Hosts
SUCCESSFUL 2024/09/29 8:02:23 2024/09/29 8:03:22  Add ESXi Host to vSphere Cluster
SUCCESSFUL 2024/09/29 8:03:22 2024/09/29 8:03:22  Generate Enter ESXi Host(s) to Maintenance Mode Input
SUCCESSFUL 2024/09/29 8:03:22 2024/09/29 8:03:59  Enter ESXi Host(s) in Maintenance Mode
SUCCESSFUL 2024/09/29 8:03:59 2024/09/29 8:04:00  Configure Lockdown Mode on ESXi Hosts
SUCCESSFUL 2024/09/29 8:04:00 2024/09/29 8:04:07  Add ESXi Hosts to vSphere Distributed Switch
SUCCESSFUL 2024/09/29 8:04:08 2024/09/29 8:04:11  Create vMotion vmknic(s) on ESXi Host
SUCCESSFUL 2024/09/29 8:04:11 2024/09/29 8:04:34  Create vSAN vmknic(s) on ESXi Host
SUCCESSFUL 2024/09/29 8:04:34 2024/09/29 8:04:41  Migrate ESXi Host Management vmknic(s) to vSphere Distributed Switch
SUCCESSFUL 2024/09/29 8:04:41 2024/09/29 8:04:43  Detach vmknic(s) from vSphere Standard Switch
SUCCESSFUL 2024/09/29 8:04:43 2024/09/29 8:04:45  Attach vmknic(s) to vSphere Distributed Switch
SUCCESSFUL 2024/09/29 8:04:45 2024/09/29 8:04:46  Remove vSphere Standard Switches from ESXi Hosts
SUCCESSFUL 2024/09/29 8:04:47 2024/09/29 8:04:47  Generate Configure Power Management Policy on ESXi Host(s) Input Data
SUCCESSFUL 2024/09/29 8:04:47 2024/09/29 8:04:47  Configure Power Management Policy on ESXi Host(s)
SUCCESSFUL 2024/09/29 8:04:47 2024/09/29 8:04:49  Create vSAN Virtual Machine Storage Policy
SUCCESSFUL 2024/09/29 8:04:49 2024/09/29 8:04:50  Associate VM Storage Policy with vSAN Datastore
SUCCESSFUL 2024/09/29 8:04:50 2024/09/29 8:05:58  Create vSAN Disk Groups
SUCCESSFUL 2024/09/29 8:05:58 2024/09/29 8:06:01  Disable vSAN VUM recommendation
SUCCESSFUL 2024/09/29 8:06:01 2024/09/29 8:06:01  Generate Persist Source ID from vCenter Server of Datastore in SDDC Manager Inventory Input Data
SUCCESSFUL 2024/09/29 8:06:01 2024/09/29 8:06:02  Persist Source ID from vCenter Server of Datastore in SDDC Manager Inventory
SUCCESSFUL 2024/09/29 8:06:02 2024/09/29 8:06:09  Exit ESXi Host(s) in Maintenance Mode
SUCCESSFUL 2024/09/29 8:06:09 2024/09/29 8:06:09  Automation Helper Action
SUCCESSFUL 2024/09/29 8:06:09 2024/09/29 8:09:21  Enable vSphere Cluster Services
SUCCESSFUL 2024/09/29 8:09:21 2024/09/29 8:09:22  Update vSAN Storage Policy
SUCCESSFUL 2024/09/29 8:09:22 2024/09/29 8:09:24  Enable DRS on the vSphere Cluster
SUCCESSFUL 2024/09/29 8:09:24 2024/09/29 8:10:38  Configure vSphere HA
SUCCESSFUL 2024/09/29 8:10:39 2024/09/29 8:10:41  Configure HA Isolation Address Option
SUCCESSFUL 2024/09/29 8:10:41 2024/09/29 8:10:43  Checking the datastore availability
SUCCESSFUL 2024/09/29 8:10:43 2024/09/29 8:10:43  Generate Inputs for Watermarking newly deployed vCenter
SUCCESSFUL 2024/09/29 8:10:43 2024/09/29 8:10:44  Watermark vCenter Server
SUCCESSFUL 2024/09/29 8:10:44 2024/09/29 8:10:44  Update SDDC Manager Inventory with Cluster Details
SUCCESSFUL 2024/09/29 8:10:44 2024/09/29 8:10:44  Update ESXi Host's Source ID in the SDDC Manager Inventory
SUCCESSFUL 2024/09/29 8:10:44 2024/09/29 8:10:44  Add newly deployed vCenter in monitoring framework
SUCCESSFUL 2024/09/29 8:10:45 2024/09/29 8:10:45  Generate Migrate VCF Attached Tags to vCenter Server Input Data
SUCCESSFUL 2024/09/29 8:10:45 2024/09/29 8:10:45  Migrate VCF Attached Tags to vCenter Server
SUCCESSFUL 2024/09/29 8:10:45 2024/09/29 8:10:45  Generate NSX Input Data
SUCCESSFUL 2024/09/29 8:10:45 2024/09/29 8:10:45  Update the SDDC Manager Inventory with NSX Details Prior to Deployment
SUCCESSFUL 2024/09/29 8:10:46 2024/09/29 8:10:46  Automation Helper Action
SUCCESSFUL 2024/09/29 8:10:46 2024/09/29 8:10:47  Create NSX Manager to vCenter Server Service Account Credentials
SUCCESSFUL 2024/09/29 8:10:47 2024/09/29 8:10:47  Automation Helper Action
SUCCESSFUL 2024/09/29 8:10:47 2024/09/29 8:10:47  Generate vCenter Server Service Accounts Data
SUCCESSFUL 2024/09/29 8:10:47 2024/09/29 8:10:47  Automation Helper Action
SUCCESSFUL 2024/09/29 8:10:47 2024/09/29 8:10:49  Create vCenter Server Users
SUCCESSFUL 2024/09/29 8:10:49 2024/09/29 8:10:49  Create vCenter Server Roles
SUCCESSFUL 2024/09/29 8:10:49 2024/09/29 8:10:50  Assign User Roles in vCenter Server
SUCCESSFUL 2024/09/29 8:10:50 2024/09/29 8:10:50  Automation Helper Action
SUCCESSFUL 2024/09/29 8:10:50 2024/09/29 8:10:51  Create NSX Workload Domain Credentials
SUCCESSFUL 2024/09/29 8:10:51 2024/09/29 8:10:52  Automation Helper Action
SUCCESSFUL 2024/09/29 8:10:52 2024/09/29 8:13:01  Validate ESXi Host(s) Connectivity to the NSX
SUCCESSFUL 2024/09/29 8:13:02 2024/09/29 9:13:08  Deploy NSX Manager
SUCCESSFUL 2024/09/29 9:13:08 2024/09/29 9:30:40  Join NSX Managers
SUCCESSFUL 2024/09/29 9:30:40 2024/09/29 9:30:41  Automation Helper Action
SUCCESSFUL 2024/09/29 9:30:41 2024/09/29 9:36:29  Set VIP For NSX Managers
SUCCESSFUL 2024/09/29 9:36:29 2024/09/29 9:37:24  Issue VMCA Certificate for NSX Managers
SUCCESSFUL 2024/09/29 9:37:24 2024/09/29 9:38:04  Issue VMCA Certificate for NSX Managers Using Virtual IP
SUCCESSFUL 2024/09/29 9:38:04 2024/09/29 9:39:33  Update SDDC Manager's known_hosts file with NSX SSH Key
SUCCESSFUL 2024/09/29 9:39:34 2024/09/29 9:39:37  Create NSX Anti Affinity Rule
SUCCESSFUL 2024/09/29 9:39:37 2024/09/29 9:39:42  Apply NSX License
SUCCESSFUL 2024/09/29 9:39:43 2024/09/29 9:40:03  Configure NSX Backup Schedule
SUCCESSFUL 2024/09/29 9:40:03 2024/09/29 9:41:01  Update NSX Manager User Attributes
SUCCESSFUL 2024/09/29 9:41:02 2024/09/29 9:41:05  Enable vLCM deployment configuration for VCF in NSX
SUCCESSFUL 2024/09/29 9:41:05 2024/09/29 9:41:10  Accept End User License Agreement for NSX
SUCCESSFUL 2024/09/29 9:41:10 2024/09/29 9:41:10  Generate Cluster High Availability Virtual Machine Restart Order Data
SUCCESSFUL 2024/09/29 9:41:10 2024/09/29 9:41:13  Override HA VM Restart Priority For Clusters
SUCCESSFUL 2024/09/29 9:41:14 2024/09/29 9:41:14  Generate Inputs for Watermarking newly deployed NSX Manager
SUCCESSFUL 2024/09/29 9:41:14 2024/09/29 9:41:15  Watermark NSX Manager
SUCCESSFUL 2024/09/29 9:41:15 2024/09/29 9:41:16  Update the SDDC Manager Inventory with NSX Details
SUCCESSFUL 2024/09/29 9:41:16 2024/09/29 9:41:17  Automation Helper Action
SUCCESSFUL 2024/09/29 9:41:17 2024/09/29 9:41:17  Generate NSX Input Data
SUCCESSFUL 2024/09/29 9:41:17 2024/09/29 9:41:18  Generate Overlay Networking Input Data
SUCCESSFUL 2024/09/29 9:41:18 2024/09/29 9:41:18  Validate ESXi Host(s) Connectivity to the NSX
SUCCESSFUL 2024/09/29 9:41:19 2024/09/29 9:42:41  Configure NSX Fabric Compute Manager
SUCCESSFUL 2024/09/29 9:42:41 2024/09/29 9:42:45  Create NSX Transport Zones
SUCCESSFUL 2024/09/29 9:42:45 2024/09/29 9:42:46  Automation Helper Action
SUCCESSFUL 2024/09/29 9:42:46 2024/09/29 9:42:50  Create NSX Uplink Profile
SUCCESSFUL 2024/09/29 9:42:50 2024/09/29 9:42:50  Prepare Inputs for Sub Transport Node Profile
SUCCESSFUL 2024/09/29 9:42:50 2024/09/29 9:42:51  Create or update NSX SubCluster
SUCCESSFUL 2024/09/29 9:42:51 2024/09/29 9:42:56  Create NSX Transport Node Profile
SUCCESSFUL 2024/09/29 9:42:56 2024/09/29 9:50:05  Create Transport Node Collection
SUCCESSFUL 2024/09/29 9:50:05 2024/09/29 9:50:06  Validate ESXi Host(s) Connectivity to the NSX
SUCCESSFUL 2024/09/29 9:50:06 2024/09/29 9:50:06  Automation Helper Action
SUCCESSFUL 2024/09/29 9:50:06 2024/09/29 9:50:11  Update Firewall Exclusion List
SUCCESSFUL 2024/09/29 9:50:11 2024/09/29 9:50:11  Generate Disable SSH On ESXi Host(s) Input Data
SUCCESSFUL 2024/09/29 9:50:11 2024/09/29 9:50:12  Disable SSH on ESXi host
SUCCESSFUL 2024/09/29 9:50:12 2024/09/29 9:50:15  Clear Alarms on ESXi Hosts
SUCCESSFUL 2024/09/29 9:50:15 2024/09/29 9:50:15  Update the SDDC Manager Inventory with new Workload Domain Details
SUCCESSFUL 2024/09/29 9:50:16 2024/09/29 9:50:16  Generate input data for unmount vCenter Server ISO Image.
SUCCESSFUL 2024/09/29 9:50:16 2024/09/29 9:50:17  Unmount the vCenter Server ISO Image
SUCCESSFUL 2024/09/29 9:50:17 2024/09/29 9:50:17  Generate Update ESXi Host(s) Source ID in the SDDC Manager Inventory Data
SUCCESSFUL 2024/09/29 9:50:18 2024/09/29 9:50:18  Update ESXi Host's Source ID in the SDDC Manager Inventory
SUCCESSFUL 2024/09/29 9:50:18 2024/09/29 9:50:18  Add newly deployed vCenter in monitoring framework
SUCCESSFUL 2024/09/29 9:50:18 2024/09/29 9:50:19  Update the NSX switch configuration in the vSphere Distributed Switch inventory
SUCCESSFUL 2024/09/29 9:50:19 2024/09/29 9:50:20  Checks whether SDDC Manager is registered as the Relying Party of WS1B
SUCCESSFUL 2024/09/29 9:50:20 2024/09/29 9:50:20  Register NSX as the Relying Party of WS1B
SUCCESSFUL 2024/09/29 9:50:20 2024/09/29 9:50:20  Release allocated resources
SUCCESSFUL 2024/09/29 9:50:21 2024/09/29 9:50:21  Automation Helper Action
SUCCESSFUL 2024/09/29 9:50:21 2024/09/29 9:50:21  Build Event data for given input
SUCCESSFUL 2024/09/29 9:50:21 2024/09/29 9:50:21  Publish Event in SDDC Manager Inventory
SUCCESSFUL 2024/09/29 9:50:22 2024/09/29 9:50:22  Generate Release Resources Lock Data
SUCCESSFUL 2024/09/29 9:50:22 2024/09/29 9:50:22  Release Resource Locks



これで、VI Workload Domain が作成されました。ただし、クラスタのライフサイクル管理はなぜかイメージ管理ではなくベースライン管理になってしまいました・・・（lifecycleManagementMode: BASELINES）

PS> Get-VCFWorkloadDomain -name vcf-w01

id                         : f4f4f451-dffb-40c8-84e0-67f0747334d0
name                       : vcf-w01
orgName                    : vcf-w01-org
status                     : ACTIVE
upgradeState               : AVAILABLE
upgradeStatus              : @{status=UP_TO_DATE}
type                       : VI
owners                     : {administrator@vsphere.local}
vcenters                   : {@{id=9d7d7fd3-8095-4fba-bf42-764aa02a09ed; fqdn=vcf-w01-vc-01.c.go-lab.jp}}
ssoId                      : 64577a9d-31d8-4582-85a8-206cbeee9dca
ssoName                    : vsphere.local
isManagementSsoDomain      : True
clusters                   : {@{id=08f12d88-65ff-4a52-8403-865afb90189d}}
nsxtCluster                : @{id=74bc4503-ae65-419e-a75b-1e1c97f94606; vipFqdn=vcf-w01-nsx.c.go-lab.jp; vip=192.168.70.22}
licensingInfo              : @{licensingMode=PERPETUAL; subscriptionStatus=UNSUBSCRIBED; isRegistered=False; isSubscribed=False}
capacity                   : @{cpu=; memory=; storage=}
lifecycleManagementMode    : BASELINES
isNetworkSeparationEnabled : False
isSecurityEnabled          : False
isPrimaryDomainForNsx      : False



以上、PowerVCF で VI Workload Domain を展開してみる話でした。
