PowerVCF で、VMware Cloud Foundation（VCF）5.2 の Management Domain に Aria Suite Lifecycle 8.18 をデプロイしてみます。
下記と同様の手順を、PowerVCF で実行してみます。
今回の内容です。
今回の環境
Request-VCFToken で、SDDC Manager のトークンを取得します。
PS> Request-VCFToken -fqdn vcf-m01-sddc-01.c.go-lab.jp -username administrator@vsphere.local -password "VMware1!VMware1!" Successfully Requested New API Token From SDDC Manager: vcf-m01-sddc-01.c.go-lab.jp
Aria Suite Lifecycle は、事前にダウンロードしてあります。ソフトウェア バンドルから downloadStatus が PENDING 以外の一覧を取得します。
PS> Get-VCFBundle | where {$_.downloadStatus -ne "PENDING"}
id : a41faebe-c1d7-4beb-88ae-8bd6ffcfea87
type : VMWARE_SOFTWARE
description : This VMware Software Upgrade contains [Add details here]. For more informa
tion, please see - [Insert link to release notes / KB article here]
version : 5.5.3-220177
vendor : VMware
releasedDate : 2024/06/14 12:00:00
isCumulative : False
sizeMB : 1841.62109375
downloadStatus : SUCCESSFUL
components : {@{description=VRSLCM Bundle; vendor=VMware; releasedDate=2024/06/14 12:00
:00; toVersion=8.18.0-24029603; fromVersion=0.0.0-0; imageType=INSTALL; id
=b349efba-80dd-4c8e-8453-2aba86b75ccf; type=VRSLCM}}
ソフトウェア バンドルには、Aria Suite Lifecycle（VRSLCM）が含まれています。
PS> Get-VCFBundle -id a41faebe-c1d7-4beb-88ae-8bd6ffcfea87 | Select-Object -ExpandProperty components description : VRSLCM Bundle vendor : VMware releasedDate : 2024/06/14 12:00:00 toVersion : 8.18.0-24029603 fromVersion : 0.0.0-0 imageType : INSTALL id : b349efba-80dd-4c8e-8453-2aba86b75ccf type : VRSLCM
1. JSON ファイルの作成
New-VCFAriaLifecycle にパラメータを渡すための JSON ファイルを作成します。
aria-lifecycle_vcf-m01.json
2. JSON ファイルの確認
JSON ファイルを「」オプションで確認します。
PS> New-VCFAriaLifecycle -json C:\work\json\aria-lifecycle_vcf-m01.json -validate id description executionStatus -- ----------- --------------- b65c5322-3cb6-4b21-8567-caae4eba7028 Validate Suite Lifecycle Deployment Parameters IN_PROGRESS
タスクの結果を確認します。
PS> Get-VCFTask -id b65c5322-3cb6-4b21-8567-caae4eba7028 | Select-Object name,status,completionTimestamp | Format-List name : Validate Suite Lifecycle Deployment Parameters status : Successful completionTimestamp : 2024/10/06 15:29:45
サブ タスクの内容です。
PS> Get-VCFTask -id b65c5322-3cb6-4b21-8567-caae4eba7028 | Select-Object -ExpandProperty subTasks | Select-Object status,creationTimestamp,completionTimestamp,name status creationTimestamp completionTimestamp name ------ ----------------- ------------------- ---- SUCCESSFUL 2024/10/06 15:29:13 2024/10/06 15:29:14 Preparation step for VMware Aria Suite Lifecycle Deployment Parameters Validation SUCCESSFUL 2024/10/06 15:29:14 2024/10/06 15:29:14 Retrieve OVA file for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:29:14 2024/10/06 15:29:14 Retrieve network information for cross-region VMware Aria deployment from inventory SUCCESSFUL 2024/10/06 15:29:14 2024/10/06 15:29:15 Automation Helper Action SUCCESSFUL 2024/10/06 15:29:15 2024/10/06 15:29:15 Validate resource names exist in vCenter. SUCCESSFUL 2024/10/06 15:29:15 2024/10/06 15:29:29 Validate NSX Tier1 gateway ip, name and availability for VMware Aria Suite Lifecycle deployment SUCCESSFUL 2024/10/06 15:29:29 2024/10/06 15:29:29 Validate Fully Qualified Domain Names and IP Addresses for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:29:29 2024/10/06 15:29:29 Validate Standalone NSX Tier1 IP is not duplicating in VMware Aria Suite Lifecycle IP addresses SUCCESSFUL 2024/10/06 15:29:29 2024/10/06 15:29:30 Validate VMware Aria Suite Lifecycle IP addresses is in the same subnet as the gateway SUCCESSFUL 2024/10/06 15:29:30 2024/10/06 15:29:30 Validate IP in Network SUCCESSFUL 2024/10/06 15:29:30 2024/10/06 15:29:42 Validate VMware Aria Suite Lifecycle IP addresses is in the same subnet as the gateway SUCCESSFUL 2024/10/06 15:29:42 2024/10/06 15:29:42 Prepare passwords for validation SUCCESSFUL 2024/10/06 15:29:42 2024/10/06 15:29:42 Validate Passwords for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:29:42 2024/10/06 15:29:43 Validate OVA for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:29:43 2024/10/06 15:29:45 Validate the gateway connectivity SUCCESSFUL 2024/10/06 15:29:45 2024/10/06 15:29:45 Consolidate the Results from Validations for VMware Aria Suite Lifecycle
3. Aria Suite Lifecycle のデプロイ
New-VCFAriaLifecycle で、デプロイを実行します。
PS> New-VCFAriaLifecycle -json C:\work\json\aria-lifecycle_vcf-m01.json id : f07703f1-b903-4e3b-b62d-4433f47d874c name : Deploy Suite Lifecycle status : IN_PROGRESS creationTimestamp : 2024/10/06 15:33:35 isCancellable : False isRetryable : False
しばらく待つと、タスクが完了します。
PS> Get-VCFTask -id f07703f1-b903-4e3b-b62d-4433f47d874c | Select-Object name,status,creationTimestamp,completionTimestamp | Format-List name : Deploy Suite Lifecycle status : Successful creationTimestamp : 2024/10/06 15:33:36 completionTimestamp : 2024/10/06 16:15:33
サブ タスクの様子です。
PS> Get-VCFTask -id f07703f1-b903-4e3b-b62d-4433f47d874c | Select-Object -ExpandProperty subTasks | Select-Object status,creationTimestamp,completionTimestamp,name status creationTimestamp completionTimestamp name ------ ----------------- ------------------- ---- SUCCESSFUL 2024/10/06 15:33:36 2024/10/06 15:33:36 Obtain Deployment Lock for VMware Aria Suite Lifecycle Deployment SUCCESSFUL 2024/10/06 15:33:36 2024/10/06 15:33:39 Preparation step for VMware Aria Suite Lifecycle deployment SUCCESSFUL 2024/10/06 15:33:39 2024/10/06 15:33:39 Retrieve OVA file for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:33:39 2024/10/06 15:33:39 Retrieve network information for cross-region VMware Aria deployment from inventory SUCCESSFUL 2024/10/06 15:33:39 2024/10/06 15:33:39 Automation Helper Action SUCCESSFUL 2024/10/06 15:33:40 2024/10/06 15:33:40 Validate resource names exist in vCenter. SUCCESSFUL 2024/10/06 15:33:40 2024/10/06 15:33:44 Validate NSX Tier1 gateway ip, name and availability for VMware Aria Suite Lifecycle deployment SUCCESSFUL 2024/10/06 15:33:44 2024/10/06 15:33:45 Validate Fully Qualified Domain Names and IP Addresses for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:33:45 2024/10/06 15:33:45 Validate Standalone NSX Tier1 IP is not duplicating in VMware Aria Suite Lifecycle IP addresses SUCCESSFUL 2024/10/06 15:33:45 2024/10/06 15:33:45 Validate VMware Aria Suite Lifecycle IP addresses is in the same subnet as the gateway SUCCESSFUL 2024/10/06 15:33:45 2024/10/06 15:33:45 Validate IP in Network SUCCESSFUL 2024/10/06 15:33:45 2024/10/06 15:33:49 Validate VMware Aria Suite Lifecycle IP addresses is in the same subnet as the gateway SUCCESSFUL 2024/10/06 15:33:49 2024/10/06 15:33:49 Prepare passwords for validation SUCCESSFUL 2024/10/06 15:33:49 2024/10/06 15:33:49 Validate Passwords for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:33:49 2024/10/06 15:33:49 Validate OVA for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:33:49 2024/10/06 15:33:51 Validate the gateway connectivity SUCCESSFUL 2024/10/06 15:33:51 2024/10/06 15:33:52 Consolidate the Results from Validations for VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 15:33:52 2024/10/06 16:01:13 Deploy VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 16:01:14 2024/10/06 16:01:41 Request and Configure VMware Aria Suite Lifecycle SSL Certificate SUCCESSFUL 2024/10/06 16:01:41 2024/10/06 16:01:41 Automation Helper Action SUCCESSFUL 2024/10/06 16:01:41 2024/10/06 16:01:42 Create SDDC Manager service account to send to VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 16:01:42 2024/10/06 16:01:50 Specifies SDDC Manager endpoint and version in VMware Aria Suite Lifecycle to enable VCF mode SUCCESSFUL 2024/10/06 16:01:50 2024/10/06 16:01:50 Prepare Hostnames for VMware Aria Suite Product SSH Keys Addition SUCCESSFUL 2024/10/06 16:01:50 2024/10/06 16:01:51 Add Entries to SDDC Manager Hosts File SUCCESSFUL 2024/10/06 16:01:51 2024/10/06 16:02:32 Change Passwords on VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 16:02:32 2024/10/06 16:02:47 Configure NTP on VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 16:02:47 2024/10/06 16:04:22 Expand VMware Aria Suite Lifecycle storage SUCCESSFUL 2024/10/06 16:04:22 2024/10/06 16:04:22 Automation Helper Action SUCCESSFUL 2024/10/06 16:04:23 2024/10/06 16:04:23 Generate VMware Aria Suite Lifecycle Role and User Data Input Data SUCCESSFUL 2024/10/06 16:04:23 2024/10/06 16:04:23 Automation Helper Action SUCCESSFUL 2024/10/06 16:04:23 2024/10/06 16:04:25 Create vCenter Server Users SUCCESSFUL 2024/10/06 16:04:25 2024/10/06 16:04:26 Create vCenter Server Roles SUCCESSFUL 2024/10/06 16:04:26 2024/10/06 16:04:27 Assign User Roles in vCenter Server SUCCESSFUL 2024/10/06 16:04:27 2024/10/06 16:04:27 Prepare VMware Aria Suite Lifecycle - vSphere account SUCCESSFUL 2024/10/06 16:04:27 2024/10/06 16:04:56 Add vCenter Server and Data Center to VMware Aria Suite Lifecycle SUCCESSFUL 2024/10/06 16:04:56 2024/10/06 16:04:57 Relocate VMware Aria Suite Lifecycle to the Correct Virtual Machine Group SUCCESSFUL 2024/10/06 16:04:57 2024/10/06 16:05:02 Import DNS server settings in VMware Aria Suite Lifecycle that can be reused for environment creation. SUCCESSFUL 2024/10/06 16:05:02 2024/10/06 16:05:08 Import NTP server settings in VMware Aria Suite Lifecycle that can be reused for environment creation. SUCCESSFUL 2024/10/06 16:05:08 2024/10/06 16:05:08 Automation Helper Action SUCCESSFUL 2024/10/06 16:05:08 2024/10/06 16:05:12 Prepare NSX Standalone Tier-1 Router Configuration SUCCESSFUL 2024/10/06 16:05:12 2024/10/06 16:15:26 Create and Configure NSX Tier-1 Gateway SUCCESSFUL 2024/10/06 16:15:26 2024/10/06 16:15:31 Create NSX Tier-0 Interface SUCCESSFUL 2024/10/06 16:15:31 2024/10/06 16:15:33 Create Tier-1 Static Routes SUCCESSFUL 2024/10/06 16:15:33 2024/10/06 16:15:33 Update status of VMware Aria Suite Lifecycle deployment SUCCESSFUL 2024/10/06 16:15:33 2024/10/06 16:15:33 Release Deployment Lock for VMware Aria Suite Lifecycle Deployment
4. デプロイ後の様子
PowerVCF では、下記のように Aria Suite Lifecycle のデプロイ情報を取得できます。
PS> Get-VCFAriaLifecycle id : 9fe34737-dc9f-45f7-8d75-d09e5b22d0a7 fqdn : vcf-m01-arialc.c.go-lab.jp ipAddress : 192.168.79.10 version : 8.18.0-24029603 status : ACTIVE

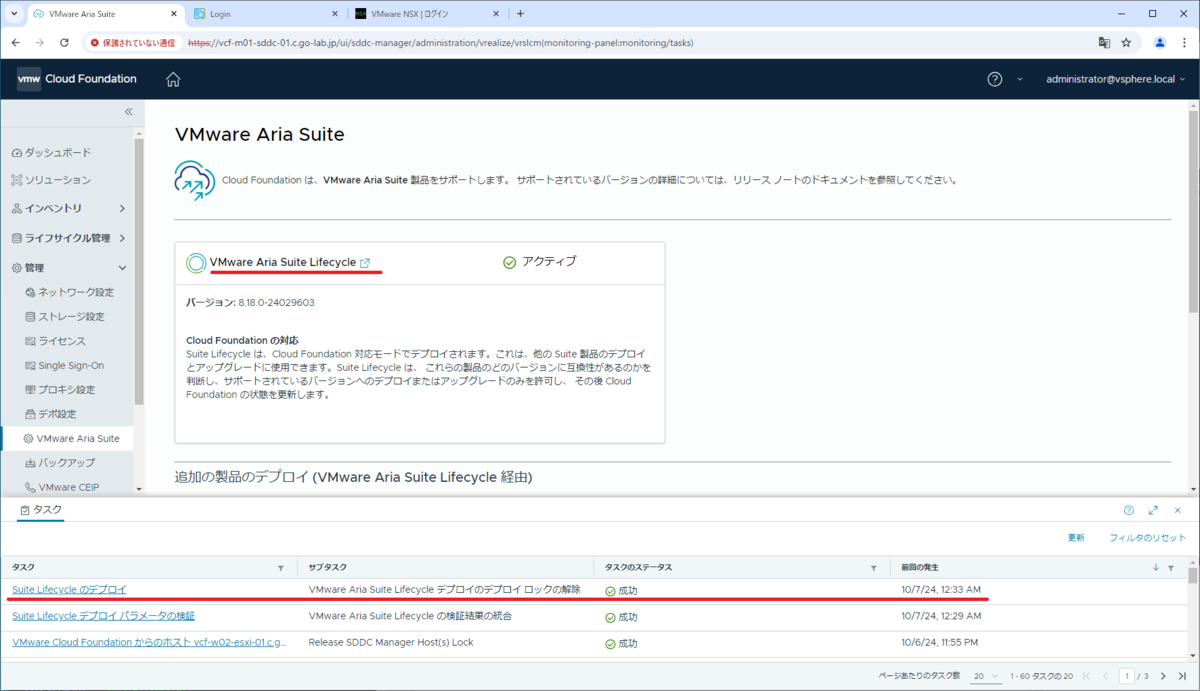

SDDC Manager でも、Aria Suite Lifecycle へのリンクが表示されるようになります。

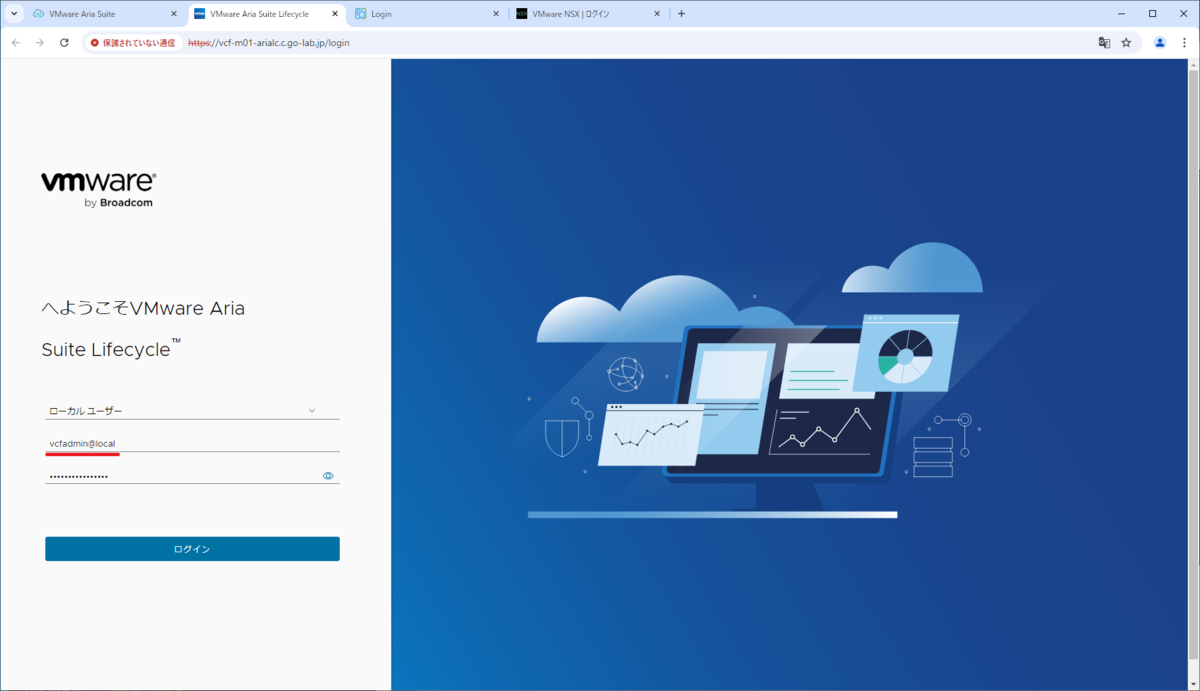

Aria Suite Lifecycle にログインする vcfadmin@local ユーザーのパスワードは、JSON ファイルの apiPassword で指定したものです。
おまけ
Aria Suite Lifecycle の旧称は vRealize Suite Lifecycle Manager で、New-VCFAriaLifecycle は New-VCFVrslcm のエイリアスです。
PS> Get-Alias New-VCFAriaLifecycle | Format-List DisplayName : New-VCFAriaLifecycle CommandType : Alias Definition : New-VCFVrslcm ReferencedCommand : New-VCFVrslcm ResolvedCommand : New-VCFVrslcm
以上、PowerVCF で Aria Suite Lifecycle をデプロイしてみる話でした。
